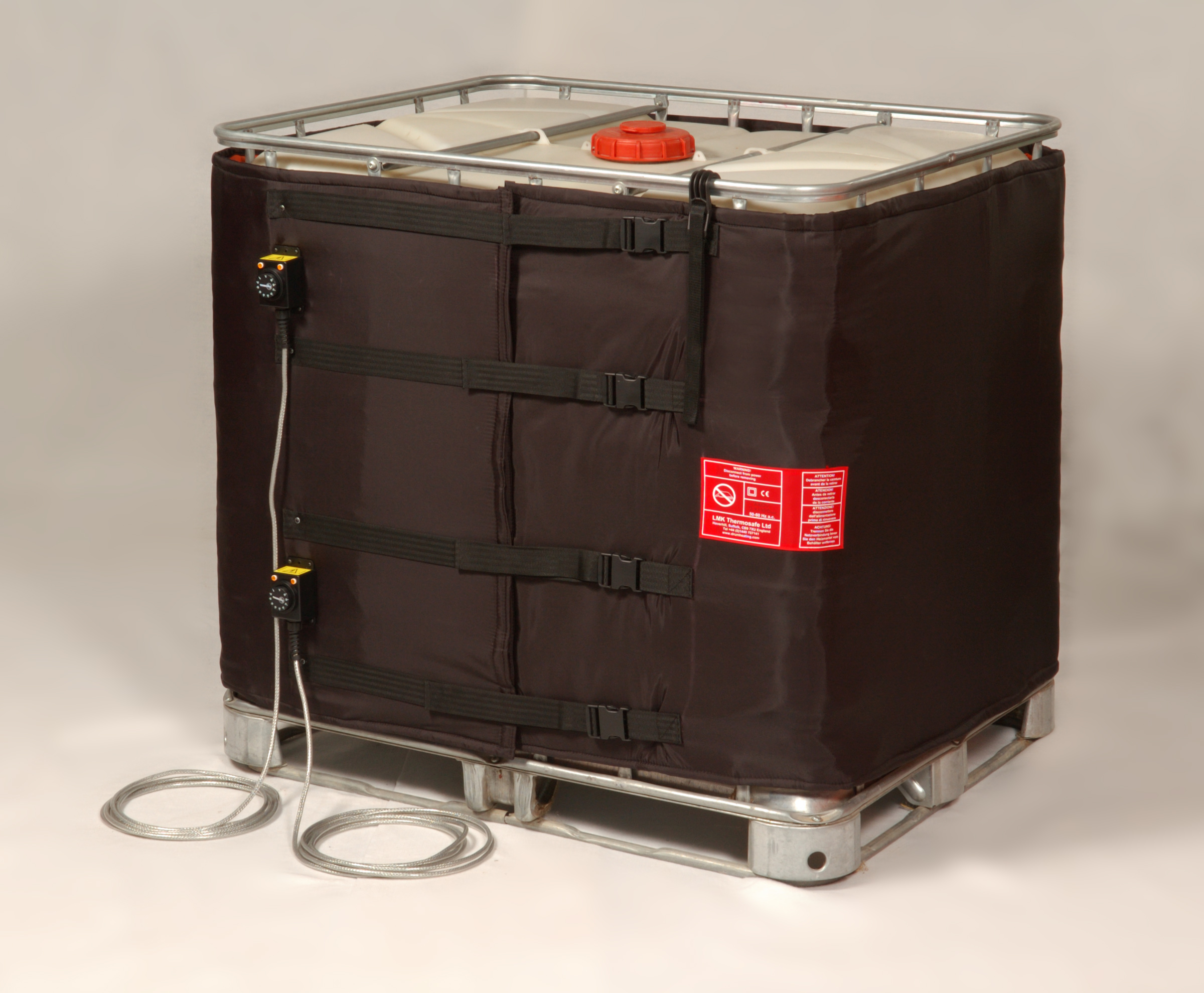

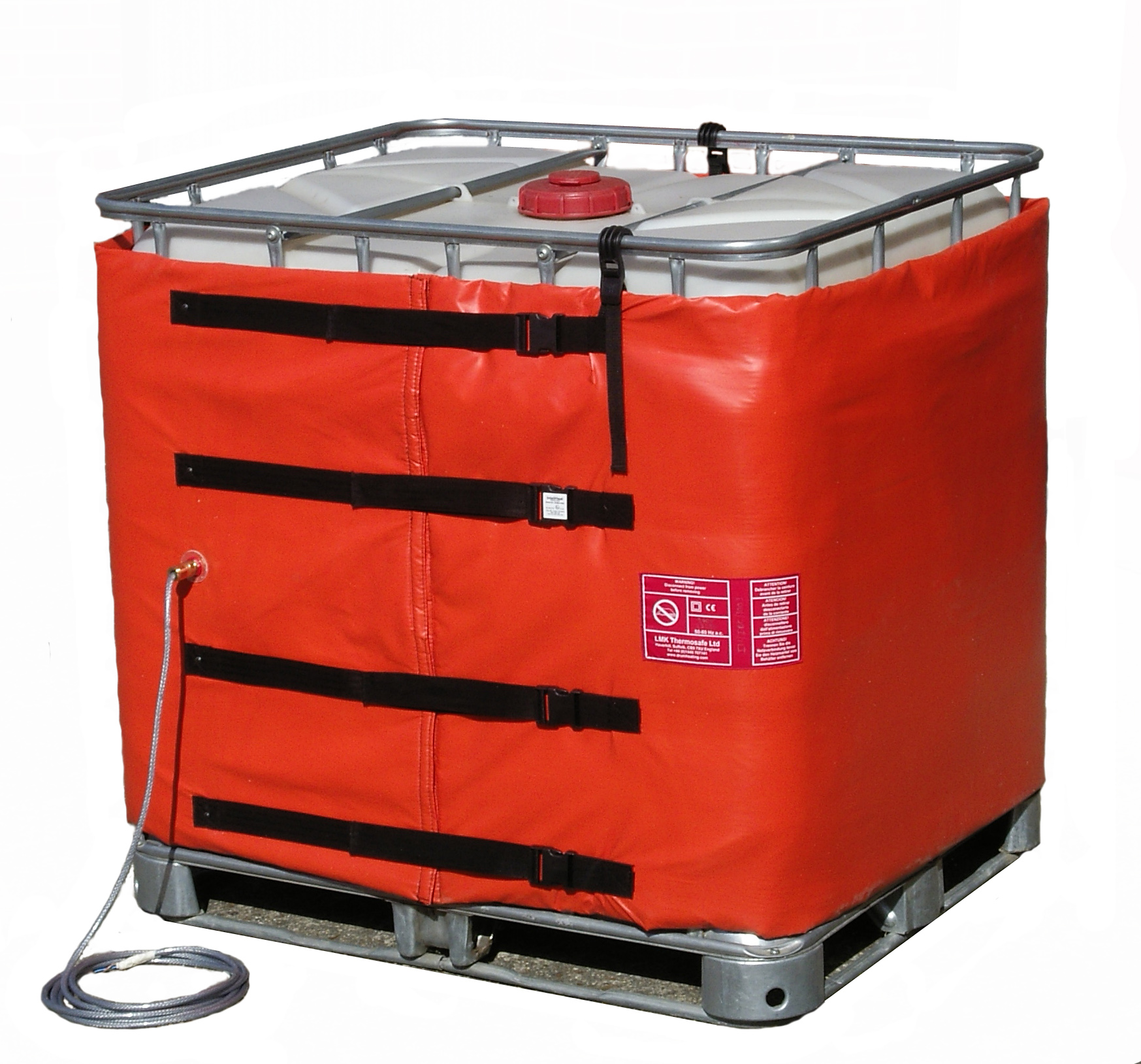

LMK Flexible Heating Jacket -------IBC Dual Circuit LMK Heating Jacket ------ InteliHeat ATEX/IECEx certified tote heater

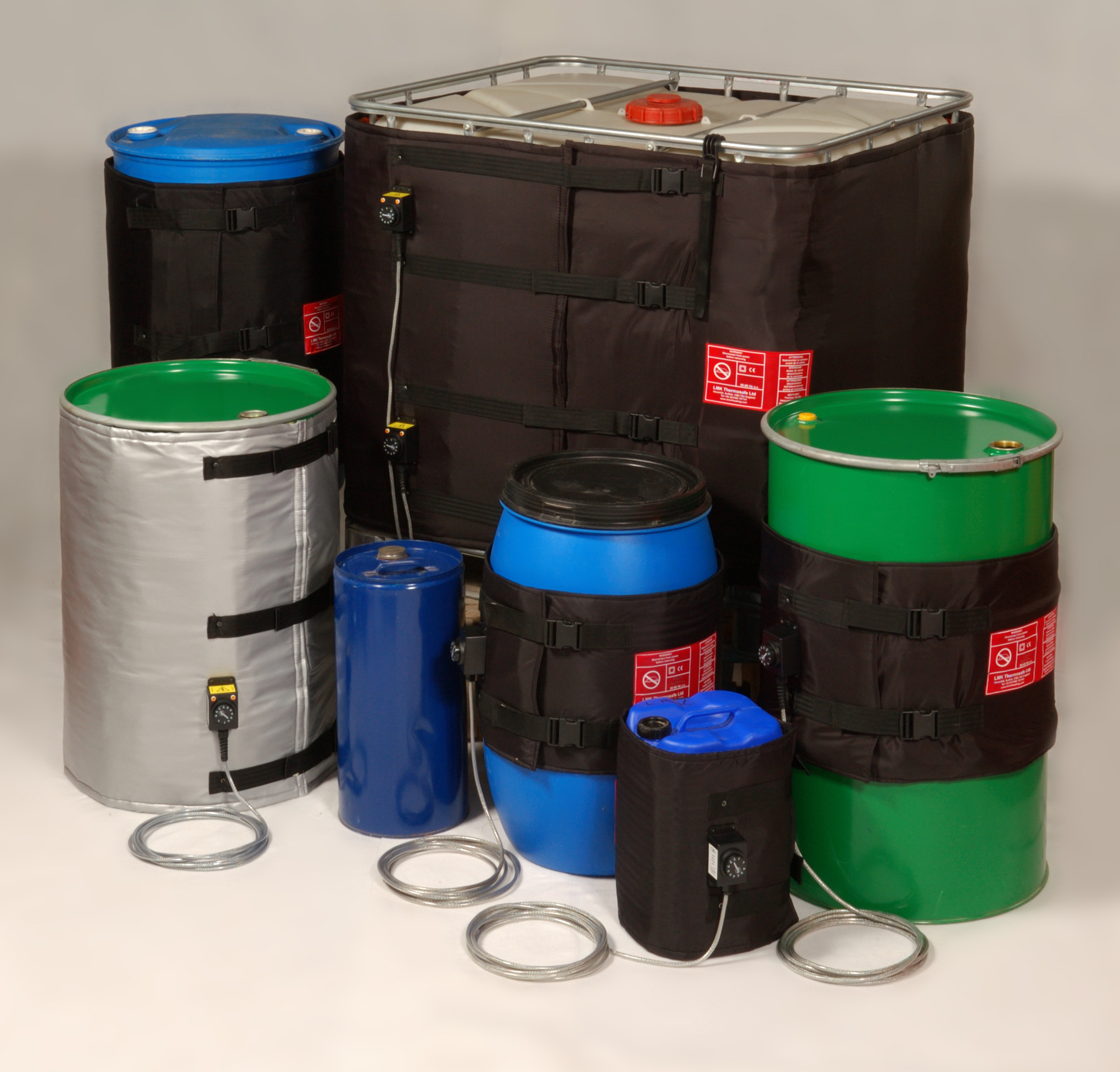

LMK flexible heating jackets are suitable for nearly all plastic, fibre and metal containers - drums, barrels, tubs, buckets, kegs, carboys, totes, IBC's etc.

WIDE RANGE OF STANDARD SIZES FROM 20 LITRES / 5 GALLON, UP TO 1200 LITRES / 300 GALLON, AVAILABLE FOR IMMEDIATE DELIVERY.

YOUR SPECIAL SIZES MADE TO MEASURE ON FAST TRACK OR STANDARD DELIVERY SCHEDULE.

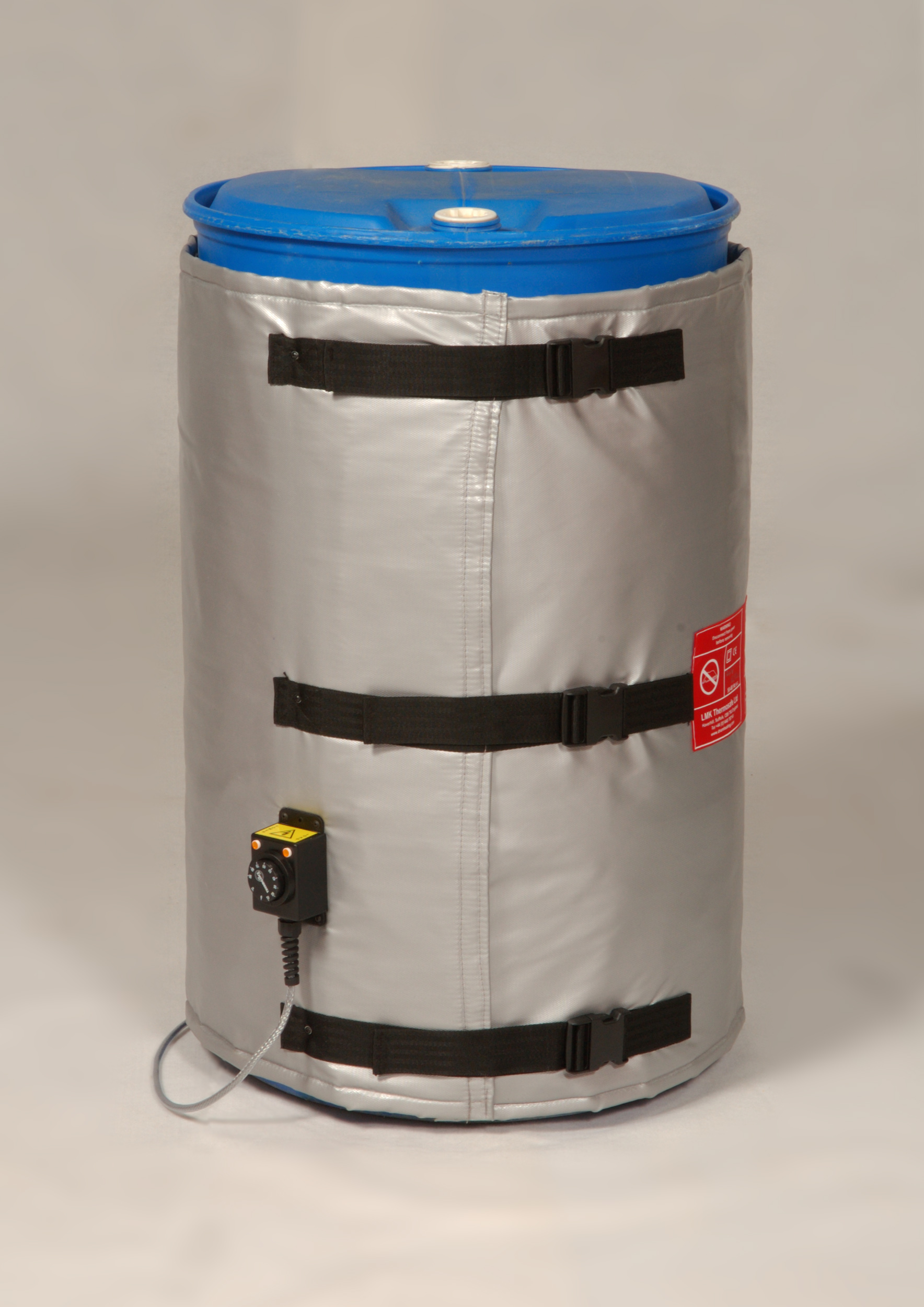

Versions for economical anti-freeze protection of 200 litre drums, 55 gallon barrels, 1000 litre IBC's or 250 gallon totes, plus high power variants for elevated temperature requirements, available from our extensive inventory.

The standard jackets incorporate a heavy duty waterproofed nylon outer material, fitted with adjustable retaining straps and quick release clips. A high thermal efficiency layer of insulation is held in place between the outer cover and the inner element carrier. The silicone insulated heating element is woven back and forth along the length of the carrier. The braided supply cable and thermostat housing is retained by a polycarbonate gland and an insulating plate.

The jackets can be manufactured in sizes and power ratings to suit particular applications, with standard units for commonly used containers. High quality insulation and direct contact with the drum ensures much higher efficiency than can be obtained from traditional band heaters. Heat losses to the surrounding air are much less than with exposed silicon band heaters so the outer surface is cooler and energy use is reduced.

Either -5 to 40 deg C (104 deg F) or 0 to 90 deg C (194 deg F) thermostats may be specified, as can operation from 240 volts ac or 110 volts ac power supply.

Jacket construction:

	Nylon, custom coated or silicone glass-cloth base fabrics.
	Hydrolysis resistant, polyurethane coated polyamide substrate with fluorocarbon finish as standard for hard wearing outer surfaces.
	Chemically resistant and high power materials as options.
	Needled polyester or fibreglass insulation.
	Silicone insulated spiral wound resistance element, or patented heater membrane for InteliHeat hazardous area jacket

Power supply and control:

	Adjustable or fixed temperature thermostat.
	Electrical insulation double insulated for safety.
	Standard 240v ac or optional 110v ac.
	Power cable 5 metres, 2 x 1mm², PVC insulated, sheathed, galvanized steel wire braided.

 High Power & Chemically Resistant Heating Jackets:

	Designed for temperatures up to 180 deg C (400 deg F).
	Very high container insulation properties.
	Faster heating rates than our standard jackets.
	Melt solids where speed and special features of Thermosafe not essential.
	Custom sizes for many process and reactor vessels.
	Contact us for full technical details and pricing.

High Power Jacket for 205 litre drum, and chemically resistant jacket on process vessel

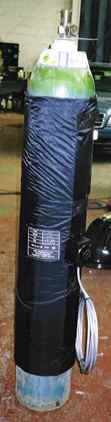

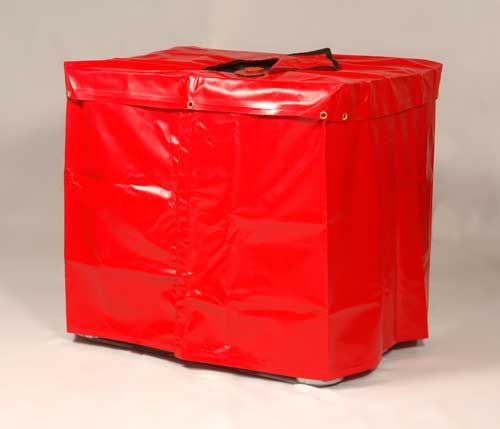

Gas Bottle Heater and heavy duty tote / IBC cover:

Call to discuss technical details and options.

Email us for a rapid reply quotation at sales@drumheating.com







Please click here for our technical feedback form:  http://QuoteMe!

 Thermosafe - Why not rent one for your metal drum heating application?

Run trials or expand short term capacity.  Click here for more information.
